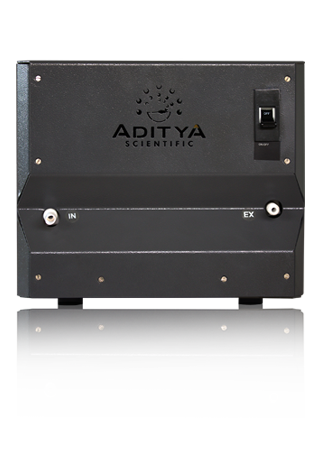

The AD2C-PRO Diaphragm Vacuum Pump by Aditya Scientific is the ideal solution for continuous and oil-free pumping of corrosive gases and vapours. It is designed with advanced vacuum technology and a brushless DC motor to ensure an efficient and worry-free evaporation process.
The diaphragm vacuum pump features two stages of construction, which provides a winning combination of high pumping speed and low ultimate vacuum. This makes it ideal for a variety of applications, including:
The AD2C-PRO Diaphragm Vacuum Pump is also made with durable materials that are resistant to aggressive solvents and acidic vapours. This makes it an environmentally friendly option that can be used in a variety of settings.
If you are looking for a reliable and efficient diaphragm vacuum pump for corrosive gases and vapours, then the AD2C-PRO from Aditya Scientific is perfect.
| TECHNICAL DATA | UNIT | AD 2C |
| Number of heads / stages | ----- | 2 |
| Max. pumping speed at 50 Hz | m3/h | 2.0 |
| Ultimate vacuum | mbar/torr | 9 / 7 |
| Ambient temperature range | °C | 10 - 40 |
| Max. back pressure (EX) (abs.) | bar | 1.1 |
| Inlet connection | mm | 10 |
| Outlet connection | mm | 10 |
| Type of motor | --- | BLDC |
| Rated motor power | watts DC | 240 |
| Dimensions (W x L x H) | mm | 280 x 217 x 240 |
| Weight | kg | 15 |
| Noise level | dBA | 45 |
| CE mark | ---- | Yes |
| Items supplied | ---- | Ready for use |
| ATEX (internal) | ---- | II 2G Ex h IIC T3 Gb |
| Integrated Digital Vacuum Controller | ---- | NA |
| Integrated Inlet Trap & Exhaust Condenser | ---- | NA |
