AS-100 OVERHEAD STIRRER
OVERHEAD STIRRER

AS-100 OVERHEAD STIRRER

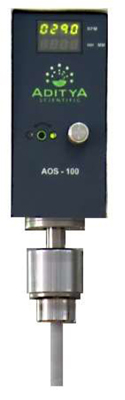

Aditya Scientific Overhead Stirrer AS-100 is a laboratory device which is used for mixing, homogenizing, suspending and recirculating large volumes of high-viscosity substances, which typically cannot be handled by a magnetic stirrer. Our overhead stirrers are suitable for simple lab stirring application as well as for stirring application in a jacketed reactor.

Aditya Scientific Overhead Stirrer AS-100 stands out due to its special features like digital display, stirring speed, torque and safety.



Technical Specifications: -

Specifications MODEL AS-100
Power In/Out watt 100/90
Gears 2
Speed Range RPM 10 - 1000
Change of Direction Yes
Rotation Speed Indicator Digital
Speed Control Electronic
Max. Torque 300 Ncm
Overload Protection Yes / Cut off
Motor Protection Temperature Monitor Software
Max. Viscosity 200000 mPas
Interface RS485 (optional)
Max. Volume H₂O 80 L
Duty Cycle Continuous
Timer Yes
Stirrer Shaft Max. Dia. 10.5 mm
Dimension of Device 70mm x 200mm x 120mm
>Support Rod Dimension Ø12mm x 160mm
Protection Class IP 54
Electrical Supply 230V AC / 50 Hz
