RTH 05025 THERMOSTAT
PROCESS REACTOR

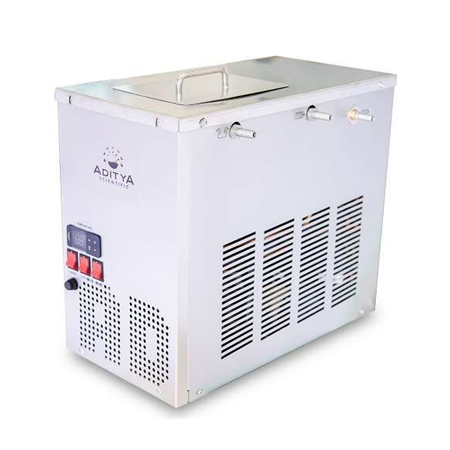

RTH 05025 THERMOSTAT

Heating - Cooling Thermostats from Aditya Scientific, the RTH series are designed for efficiently controlling the temperatures in the range of -20⁰C to +180⁰C for applications like Jacketed Glass Reactor.

Aditya Thermostats are available in three different models from bath vol. 4.5 L to 12 L. The temperature range from -20°C to 180°C covers the larger part of all basic thermostatic applications within the laboratory.

Features: -

  • Has large LED display with intuitive navigation
  • Provides cost-effective operation
  • Has heating capacity of 2000 w
  • Automatic compressor control supplies strong cooling output only when needed - up to 2500 w
  • Minimum energy consumption
  • Extended maintenance intervals


Technical Specifications: -

Working temperature range* °C

Temperature stability ±°C

Cooling capacity at 0 °C watts

Pump pressure max. bar

Pump flow max. L/min

Heating Capacity watts

Bath  Capacity L

Supply

-15  to 180

0.1

500

0.7

12

2000

4.5

230V AC / 50 Hz
