Rotary Evaporator | Rotavapor | Rotavap | Auto Rotavapour
Rotary Evaporator
LAB EVAPORATION SYSTEM

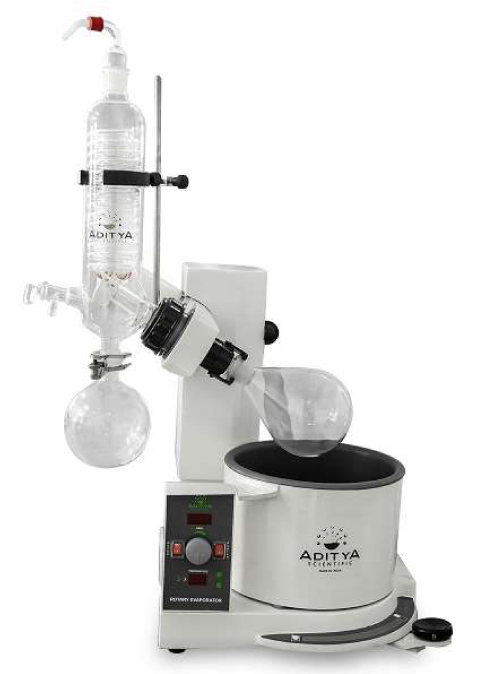

RE-2A ROTARY EVAPORATOR

RE-2A rotary evaporator forms the ideal basis for efficient evaporation in the laboratory. They are suitable for standard distillation, for complex distilling processes as well as for automatic distillation. Aspects such as safety, convenience and cost savings have been considerably taken into account during the development of the rotary evaporator. The RE-2A rotary evaporator has an automatic lift type and is more powerful.

Features: -

  • Comes with an integrated Combi-Clip
  • Equipped with an LED rotation speed setting
  • Comes with an electronic speed control rotation drive
  • Equipped with a vapor tube that can be easily removed for cleaning purposes
  • Comes with a safety protection switch to avoid overheating
  • Has a flexible bath position
  • Sealing Ring: Graphite filled PTFE
  • Ceramic coated heating bath
  • Automatic lift type
  • Total power of 1360 watts
  • Equipped with secondary protection cut off switch


Technical Specifications: -

Description RE2A
Lift Type Automatic
Condenser Type Vertical/Horizontal
Rotation Speed (RPM) 20-320
Vapour Tube Single piece with Sleeve for Easy Removal
Integrated Combi-Clip Yes
Suitable flask size (ml) 50-5000 ml
Rotation speed setting LED Display
Rotation Driver Electronic Speed Control
Motor Power (W) 60
Heating Capacity (W) 1300
Total Power (W) 1360
Temperature Range (oC) 20 – 210
Temperature Accuracy (oC) 1
Overheat Protection Safety cutoff over +5 (oC)
Temperature Setting Digital LED
Temperature Control Electronic PID Control
Secondary Protection Cutoff 250oC
Material Heating Bath Ceramic Coated / SS316L
Volume Heating bath (L) 4.5L - Dia 255mm Suitable 50- 5000ml
Bath Position Flexible to extend to suit flask size
Sealing ring Graphite filled PTFE
Power Supply 230 VAC, 50Hz
