Stirrer Gland
PROCESS REACTOR

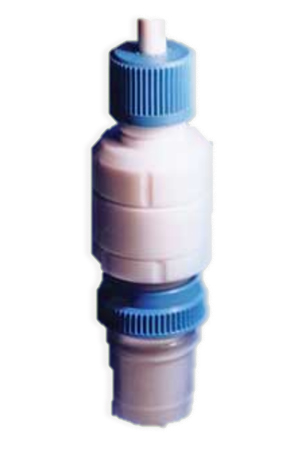

HIGH VACUUM STIRRER GLAND

Unique features of the design are a permanently loaded composite PTFE/PEEK seal and a specifically fabricated glass ball-bearing for rigidity and smoothness of operation.

Shaft Diameter: 8mm, 10mm, 12mm Available

Features: -

  • High level of chemical resistance
  • Anti-whip and reduced vibration
  • Vacuum (~5mm Hg) and pressure (3-5psi) performance
  • No shedding
  • Self releasing joint ring
  • Maximum recommended speeds: continuous 500rpm, 800rpm intervals
