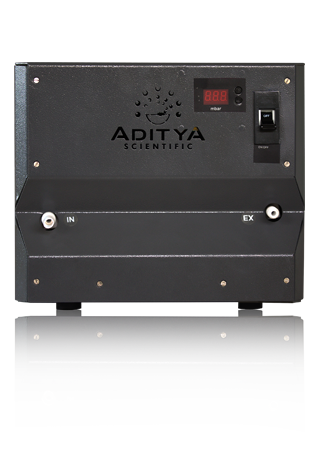

The AD2C-PRO-VC Diaphragm Vacuum Pump by Aditya Scientific comes with a digital vacuum controller and is the perfect solution for your corrosive gas and vapour needs. It is designed with advanced vacuum technology and a brushless DC motor to ensure an efficient and worry-free evaporation process.
The diaphragm vacuum pump features two stages of construction, which provides a winning combination of high pumping speed and low ultimate vacuum. This makes it ideal for a variety of applications, including:
The AD2C-PRO Diaphragm Vacuum Pump is also made with durable materials that are resistant to aggressive solvents and acidic vapours. This makes it an environmentally friendly option that can be used in a variety of settings.
Outstanding chemical resistance and superior vapour tolerance: This model of diaphragm vacuum pump can handle even the most corrosive gases and vapours without breaking down. This makes it the perfect choice for demanding applications.
High performance even at low vacuum levels: The diaphragm vacuum pump can handle even the most corrosive gases and vapours without breaking down. This makes it the perfect choice for demanding applications.
Easy to operate: The diaphragm vacuum pump is easy to operate and maintain.
Whisper quiet and low vibration: The diaphragm vacuum pump is whisper quiet and has low vibration. This makes it ideal for use in laboratories and other sensitive environments.
Long diaphragm life: The diaphragm vacuum pump has a long diaphragm life, which means you'll save money on replacement parts.
Maintenance-free drive system: The diaphragm vacuum pump has a maintenance-free drive system, which means you will spend less time on maintenance and more time on your work.
If you are looking for a reliable, efficient, and easy-to-use diaphragm vacuum pump for corrosive gases and vapours, then the AD2C-PRO-VC diaphragm vacuum pump from Aditya Scientific is the perfect choice for you.
| TECHNICAL DATA | UNIT | AD 2C |
| Number of heads / stages | ----- | 2 |
| Max. pumping speed at 50 Hz | m3/h | 2.0 |
| Ultimate vacuum | mbar/torr | 9 / 7 |
| Ambient temperature range | °C | 10 - 40 |
| Max. back pressure (EX) (abs.) | bar | 1.1 |
| Inlet connection | mm | 10 |
| Outlet connection | mm | 10 |
| Type of motor | --- | BLDC |
| Rated motor power | watts DC | 240 |
| Dimensions (W x L x H) | mm | 280 x 217 x 240 |
| Weight | kg | 15 |
| Noise level | dBA | 45 |
| CE mark | ---- | Yes |
| Items supplied | ---- | Ready for use |
| ATEX (internal) | ---- | II 2G Ex h IIC T3 Gb |
| Integrated Digital Vacuum Controller | ---- | Yes |
| Integrated Inlet Trap & Exhaust Condenser | ---- | NA |
